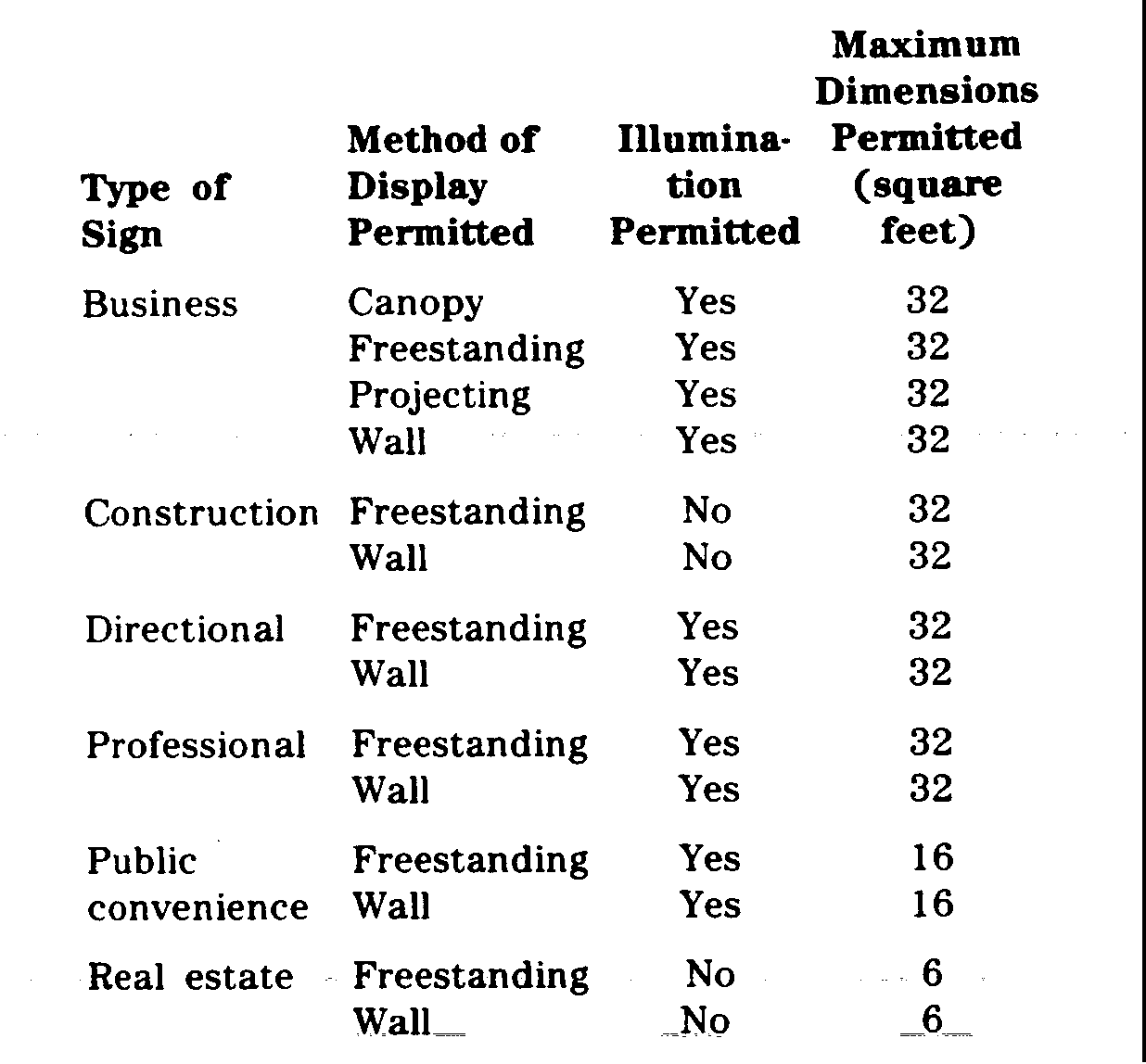

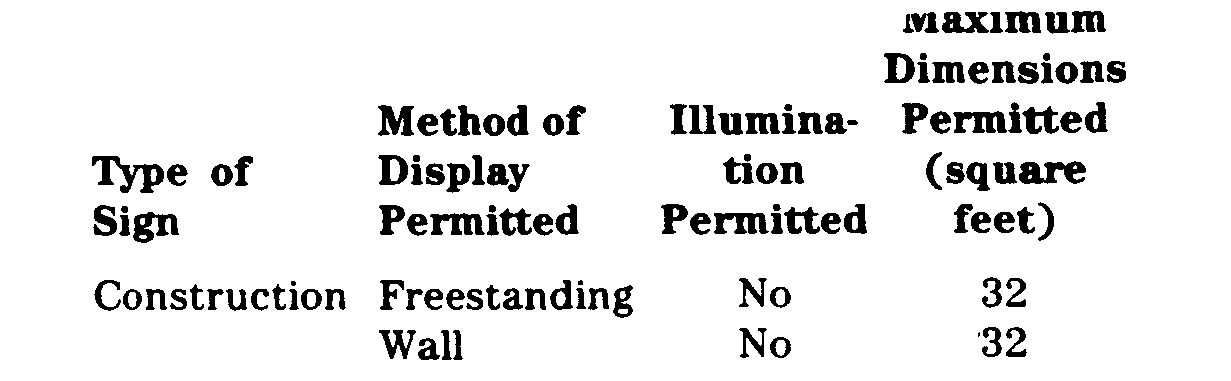

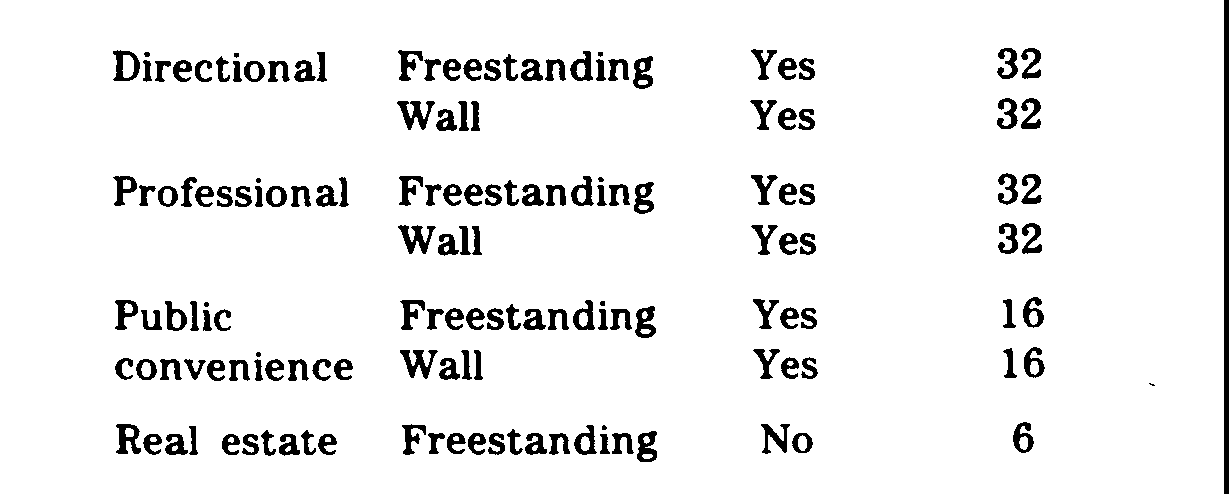

(3) Industrial District. [Added 3-26-86 by Ord. No. 0-6-86]
(4) Planned Community Districts. [Added 3-26-86 by Ord. No. 0-6-86]
F. Nonconforming signs.
(1) Any signs now in existence, the erection or placing of which would be prohibited hereunder, may be continued on such building, structure, lot or land so occupied. However, at no time shall such sign be altered, rebuilt, enlarged, extended or relocated unless such action changes a nonconforming sign into a conforming sign as provided herein.
(2) The failure to keep a nonconforming sign painted or in good repair for a period of six (6) months shall constitute abandonment, and such sign may not be reused and must be removed.
G. Violations and penalties. Any person, firm or corporation who shall violate, disobey, omit, neglect or refuse to comply with any provisions of this chapter and Chapter 228 shall be upon a conviction thereof, subject to a fine of not more than fifty dollars ($50.), and each and every day that such violation continues shall constitute a separate and distinct offense.
H. Signs required by Planning Board. To facilitate the safe and efficient movement of traffic into and out of a site, the Planning Board may, as a condition of the site plan or subdivision approval, require the installation of specified directional, regulatory or advisory signs or pavement markings at designated locations on the site of the right-of-way. Such signs shall be of a size, color and design specified in accordance with the Uniform Manual of Traffic Control Devices.
No steps or stairways, open or enclosed, shall be erected upon or attached to the outside front or side of any building in any residence or business district, but nothing herein shall bar front or side porch steps and front or side entrance steps to the first floor only.
A. Storage of articles to be displayed or sold on the premises of a commercial, industrial or other use shall be limited to a reasonable supply and, if stored outdoors, shall be stored in an area that is fenced or screened from view.
B. No goods, articles, appliances or vehicles shall be displayed or offered for sale beyond the front line of the buildings on such premises, or beyond the side line of the buildings of a corner premises.
A. Policy statement.
(1) All future development in Winslow Township shall utilize the best available technology to minimize offsite storm water runoff, increase on-site infiltration, simulate natural drainage systems and minimize off-site discharge of pollutants to ground or surface water and encourage natural filtration functions.
(2) The runoff control methods shall be to prevent the rate of off-site storm water runoff during the construction and operation of a development under selected storm conditions from exceeding the rate of runoff that would occur under the existing predeveloped conditions.
(3) All streets shall be provided with storm water inlets and pipes where same may be necessary for proper surface drainage. The system shall be adequate to carry off and/or store the storm water and natural drainage water which originates beyond the development boundaries and passes through the development, calculated on the basis of maximum potential development as permitted. No storm water runoff or natural drainage water shall be so diverted as to overload existing drainage systems or create flooding or the need for additional drainage structures on other lands without proper and approved provisions being made for taking care of these conditions, including off-tract improvements.
B. General drainage requirements.
(1) When a developer or his engineer determines that it will be necessary to utilize design standards in addition to or other than those minimum requirements established herein, he is advised to consult with the Board Engineer prior to beginning his detailed design for review and approval of his proposed design standards. Standards utilized should generally be nationally recognized and in common use in this area.
(2) When the Board finds it necessary, they may waive any or all of the requirements established herein and may require additional information, in accordance with N.J.S.A. 40:55D-51.
(3) All development applications must be accompanied by a drainage area map and a drainage report which shall include all onsite and offsite areas contributing to the stormwater management system. Locations of soil borings and percolation tests, as required below, shall be shown on the development plans. Results of such tests shall also be shown on the plans or included in the drainage report. Drainage calculations shall include the results of soil borings and percolation tests.
(4) Percolation tests and reports:
(a) The percolation tests shall be at a depth of two (2) feet below the bottom elevation of the proposed recharge area.
(b) At least one (1) percolation test shall be performed at the site of each recharge area. More than one (1) test shall be required where the soil structure may vary or where large recharge areas are required. Preliminary tests for tracts involving more than one (1) recharge system may be made in the amount of one (1) per acre or as prescribed by the Board's Engineer. All the percolation tests shall be performed under the supervision of a licensed professional engineer, and the Planning Board Engineer or his authorized agent. The Board's Engineer or his authorized agent may waive the right to observe the percolation tests.
(c) Percolation tests shall not be made in test holes which have been allowed to remain open to the atmosphere for periods over three (3) days or in frozen ground. Tests shall not be made in filled ground unless the soil has been compacted or allowed to settle to the satisfaction of the Board's Engineer.
(d) Percolation tests shall be performed in accordance with the following procedures:
(i) Step 1: Prepare a test hole in the undisturbed soil at the depth intended to be used for recharge purposes, having horizontal dimensions of eight (8) inches to twelve (12) inches. Means may be used to protect the soil in the test hole from becoming clogged with silt and clay particles. Establish a fixed point at the top of the hole from which all shall be taken. Fill the hole with water and allow all of the water to drain into the soil.
(ii) Step 2: Fill the hole to a depth of approximately seven (7) inches. At a five (5) to thirty (30) minute time interval, depending on the rate of fall, record the drop in water level in inches during the time interval selected. Immediately refill the hole to the original depth of approximately seven (7) inches, and repeat the test using the same time interval and method. Repeat this procedure until the distance that the water has fallen in the time interval selected becomes approximately equal. (Steps 3 and 4 shall follow immediately.)
(iii) Step 3: Remove any silt accumulation or debris remaining in the hole.
(iv) Step 4: Refill the hole to a depth of seven (7) inches as quickly as possible and record the time required for only six (6) inches of the water to seep away. This time divided by size will be the percolation rate in minutes per inches.
(e) Reports shall be furnished to the Planning Board Engineer indicating the result of each percolation test in minutes per inch (including unacceptable rates), the date of the test, effect of recent rain or lack of rain, the apparent moisture of the soil prior to the test, the depth to groundwater when encountered, number of preliminary tests made to determine apparent saturation, the type or types of soil encountered, using the Unified Soil Classification System, or such other system as approved by the Planning Board Engineer, together with the thickness of each layer and all other factors affecting percolation test results.
(5) Soil borings.
(a) A minimum or two (2) soil borings shall be required for all detention, retention or other stormwater facilities. For all basins with a surface area of one-half (1/2) acre or more, borings will be required at a rate of one (1) boring for each one-half (1/2) acre in addition to the initial minimum of two (2) borings per facility. All borings must extend ten (10) feet below the existing ground surface or to a depth of at least eight (8) feet below the depth of the proposed recharge facility, whichever is greater. Soil boring information shall be displayed on preliminary plans and shall include:
(i) The soil texture as described in the United States Department of Agriculture Soil Texture Classification System.
(ii) The soil colors as described in the Munsell Color Chart.
(iii) The estimated depth of seasonal high groundwater based on mottling characteristics of the soil.
(iv) The boring.
(v) The date of boring.
(6) Drainage easements.
(a) All stormwater management plans shall illustrate the pathway of positive outflow to the nearest stormwater easement, stream, lake, pond or other natural watercourse. Prior to receiving the final approval, the applicant shall obtain the necessary easements corresponding with the flow patterns illustrated on the plans should those patterns affect the present or future use of adjoining parcels by increasing the quantity of runoff over the adjoining parcel:
(b) Where a subdivision is traversed by a watercourse, surface or underground drainageway or drainage system, channel or streams there shall be provided and dedicated a drainage right-of-way easement to the township conforming substantially to the lines of such watercourse, and such further width or construction, or both, as will be adequate to accommodate expected stormwater runoff. Such easement dedication shall be expressed on the plan as follows: "Drainage and utility right-of-way easement granted to the Township of Winslow."
C. Design standards.
(1) Detention and retention basins fences. In all those cases where either a detention or retention basin shall be required, no certificate of occupancy shall issue unless a sufficient fence, approved by the Planning Board, shall have first been erected.
(2) Detention basins.
(a) The flood and erosion control standard for detention will require that volumes and rates be controlled so that after development the site will generate no greater peak runoff from the site than prior to development, for a two (2) year, ten (10) year and one hundred (100) year storm considered individually.
(b) One (1) foot of freeboard shall be provided above the one hundred (100) year storm elevation.
(c) A minimum of two (2) feet shall be provided between the basin bottom and the seasonally High Water table.
(d) Design shall be based upon the Rational Method or the Soil Conservation Service Urban Hydrology for Small Watersheds, Technical Release No. 55. Other Methods must be approved by the Planning Board engineer.
(e) Flood routing shall utilize the continuity equation, or other method approved by the Planning Board engineer.
(f) Outlet waters, including that from a design storm with a recurrence interval of one hundred (100) years, shall be discharged from the development at such locations and velocities as to not cause additional erosion or cause additional channels beyond the development from those natural or other drainageways existing before development.
(g) In establishing the location of and constructing basins, every effort shall be made to utilize existing contours and depressions. Where excavation is necessary, side slopes shall not exceed three to one (3:1).
(h) All detention basins must have length to width ratios of at least two to one (2:1) and maximize to the extent practicable the distance between basin inflow and outflow. A slope of one percent (1%) shall be provided from inlet to outlet.
(i) Water tolerant species of vegetative cover for detention basin usage must be employed. Suggested varieties of cover include reed, canary-grass, feseue, perennial rye, orchard grass, bermuda grass, and wetland species of vegetation.
(j) During construction, all basins shall be lined with filter fabric or protected by other means acceptable to the township to prevent the siltation of subsurface soils. After completion of the proposed development, any fabric used shall be removed by the developer. The basin bottom shall then be cleaned of any silt and debris. The developer shall take all additional steps that may be required to ensure percolation rates used in the basin design.
(k) At inflow points to detention basins, energy dissipators, designed in accordance with the current Soil Conservation Service standards for soil erosion and sediment control, must be incorporated to reduce the velocity of inflowing waters.
(3) Retention basins.
(a) Retention basins shall be constructed only when it is determined that a detention facility cannot be accommodated due to site conditions.
(b) Retention basins and other recharge facilities shall be designed to accommodate the volume of runoff generated from a post-development fifty (50) year storm at a twenty-four (24) hour duration based on the U.S. Soil Conservation Service Technical Release No. 55 or the Soil Conservation Service National Engineering Handbook.
(c) Two (2) feet must be provided between the invert of the retention basin and the seasonal high water table.
(d) If clay is present in the soil log, the basin should be relocated to a more suitable area. If relocation cannot be accommodated, the area shall be excavated below the clay and replaced with suitable backfill. Stone wicks should also be provided if deemed necessary by the Planning Board Engineer.
(e) In establishing the location of and constructing basins, every effort shall be made to utilize existing contours and depressions. Where excavation is necessary, side slopes shall not exceed three to one (3:1).
(f) Water tolerant species of vegetative cover for retention basin usage must be employed. Suggested varieties of cover include reed, canary grass, fescue, perennial rye, orchard grass, bermuda grass, and wetland species of vegetation.
(g) During construction, all basins shall be lined with filter fabric or protected by other means acceptable to the township to prevent the siltation of subsurface soils. After completion of the proposed development, any fabric used shall be removed by the developer. The basin bottom shall then be cleaned of any silt and debris. The developer shall take all additional steps that may be required to ensure percolation rates assumed in the basin design.
(h) At inflow points to retention basins, energy dissipators, designed in accordance with the current Soil Conservation Service standards for soil erosion and sediment control, must be incorporated to reduce the velocity of inflowing waters.
(4) Subsurface retention facilities.
(a) Subsurface Retention Facilities are strictly prohibited in Winslow Township unless it is determined by the Planning Board Engineer that no other means of stormwater management can be accomplished on the site.
(5) Storm drain systems.
(a) As a minimum, a five (5) year storm shall be used in storm drain systems where excess flow can continue downgrade in the street and not exceed the gutter capacity.
(b) As a minimum, a ten (10) year storm shall be used at low points in storm drain systems with overland relief.
(c) As a minimum, a twenty-five (25) year storm shall be used where flow in a storm drain system is totally carried by pipe.
(d) As a minimum, a twenty-five (25) year storm shall be used for culvert design.
(e) All storm sewer should be constructed of reinforced concrete and shall be a minimum of fifteen (15) inches in diameter. Other storm sewer materials must be approved by the Planning Board Engineer.
(f) The minimum slope on any pipe shall produce a velocity of no less than three (3) feet per second when the pipe is flowing full. Velocities shall be calculated using Manning's equation. The friction factor of 0.013 shall be used for circular concrete pipe.
(g) Generally, minimum cover over storm drains shall be two (2) feet.
(h) Inlets shall be placed at locations to prevent either the gutter capacity and/or inlet capacity from being exceeded. Maximum spacing between storm sewer inlets and manholes shall be five hundred (500) feet.
(i) Profiles of all storm sewer should be provided at a scale of 1' = 50' horizontally and 1" = 5' vertically. The pipe size, material, slope and inverts should be shown on the profile.
(j) Pipe crown elevations shall be matched in all manholes and inlets.
(6) Open channels.
(a) As a minimum, open channels shall be designed on the basis of a twenty-five (25) year storm frequency when the upstream drainage area is less than fifty (50) acres. When the upstream drainage area is fifty (50) acres or -more, they shall be designed on the basis of a one hundred (100) year frequency storm.
(b) All open channels, surface relief swales and outlet structures shall be designed in conformance with the Standards for Soil Erosion and Sediment Control in New Jersey, as amended and revised to date.
(7) Grading.
(a) The Drainge Plan shall provide enough grading information to determine the direction of stormwater flow and to ensure that local low points are not created.
(b) Proposed contours and adequate spot elevations shall be included in the grading plan. Spot elevations should be shown at all points of curvature and points of tangency and every fifty (50) feet along gutter and curblines. Top of curb elevations shall also be shown at those locations.
(c) The following grade information should be provided along township and county roads when the road is proposed to be widened or when curb is proposed:
(i) The existing centerline and edge of pavement elevation, proposed gutter and top of curb every fifty (50) feet and at critical points along the road. Plans should be drawn at a scale of 1" = 30' or larger to show this information clearly.
(ii) A two to four percent (2-4%) cross slope shall be provided from existing edge of road to proposed gutter.
(iii) A minimum of 0.5% longitudinal slope must be provided along the gutter Longitudinal slope must be relatively uniform.
(d) The existing center line and edge of road elevation must be provided every fifty (50) feet and at critical points along roads abutting the project.
(e) For both major and minor development, blocks and lots shall be graded to secure proper drainage away from all buildings and to prevent the collection of stormwater in pools and to avoid concentration of stormwater on individual lots.
A. Street design.
(1) The arrangement of streets not shown on the Master Plan or Official Map shall be such as to provide for the appropriate extension of existing streets.
(2) Minor streets shall be so designed as to discourage through traffic.
(3) Subdivisions abutting arterial streets shall provide a marginal service road or reverse frontage with a buffer strip for planting, or some other means of separation of through and local traffic as the Planning Board may determine appropriate.
(4) Right-of-way widths.
(a) The right-of-way width shall be measured from lot line to lot line and shall not be less than the following:
(i) Arterial streets: Sixty (60) feet.
(ii) Collector streets: Sixty (60) feet.
(iii) Minor streets: Fifty (50) feet.
(iv) Marginal-access streets: Fifty (50) feet.
(b) The right-of-way width for internal roads and alleys in multifamily, commercial and industrial development shall be determined on an individual basis and shall in all cases be of sufficient width and design to safely accommodate the maximum traffic, parking and loading needs and maximum access for firefighting equipment.
(5) No subdivision showing reserve strips controlling access to streets shall be approved except where the control and disposal of land comprising such strips has been placed in the governing body under conditions approved by the Planning Board.
(6) Subdivisions that adjoin or include existing streets that do not conform to widths as shown on the Master Plan or Official Map or the street .width requirements of this chapter shall dedicate additional width along either one (1) or both sides of said road. If the subdivision is along one (1) side only, one-half (1/2) of the required extra width shall be dedicated.
(7) Grades of arterial and collector streets shall not exceed four percent (4%). Grades on other streets shall not exceed ten percent (10%). No street shall have a minimum grade of less than one-half (1/2) of one percent (1%). Maximum grades within intersections shall be four percent (4%).
(8) Street intersections shall be as nearly at right angles as is possible and in no case shall be less than sixty (60) degrees. The block corners at intersections shall be rounded at the curblines with a curve having a radius of not less than ten (10) feet.
(9) Street jogs with center-line offsets of less than one hundred twenty-five (125) feet shall be prohibited.
(10) When connecting street lines deflect from each other at any one (1) point by more than ten (10) degrees and not more than forty-five (45)degrees; they shall be connected by a curve with a radius of not less than one hundred (100) feet for minor streets and three hundred (300) feet for arterial and collector streets.
(11) All changes in grade shall be connected by vertical curves of sufficient radius to provide a smooth transition and proper sight distance.
(12) Dead-end streets (cul-de-sac) shall not be longer than six hundred (600) feet and shall provide a turnaround at the end with a radius of not less than fifty (50) feet and tangent whenever possible to the right side of the street. If a dead-end street is of a temporary nature, a similar turnaround shall be provided and provisions made for future extension of the street and reversion of the excess right- of-way to the adjoining properties.
(13) No street shall have a name which will duplicate or so nearly duplicate as to be confused with the names of existing streets. The continuation of an existing street shall have the same name.
(14) Streets shall be so oriented as to permit, within the limits of practicability and feasibility, the buildings constructed thereon to maximize solar gain.
(15) Streetlights shall be in accordance with § 294-113 of this Article.
B. Street pavements.
(1) All streets, roads or avenues shall be surfaced with a permanent paving as described below for each type of street.
(2) Pavement thickness and type shall be as follows:
(a) Arterial streets shall have a ten (10) to twelve (12) inch thickness consisting of:
(i) Two (2) inches of FABC-1 over;
(ii) Four (4) inches of bituminous stabilized base course over;
(iii) Four (4) inches of quarry blend; or six (6) inches of gravel.
(b) Collector streets shall have eight (8) to ten (10) inch thickness consisting of:
(i) Two (2) inches of FABC-1 over;
(ii) Two (2) inches of bituminous stabilized base course over;
(iii) Four (4) inches of quarry blend; or six (6) inches of gravel.
(c) Minor streets shall be the same as collector streets.
(d) Marginal access streets shall be the same as collector streets.
C. Each land development requiring site plan and/or subdivision approval shall install six (6) inch by eight (8) inch by eighteen (18) inch concrete curbs and gutters (gutter will not be required except in cases where the grade of the road is less than fifty ten-thousandths [0.0050] and, in the opinion of the Township Engineer, a drainage problem exists) along the entire property frontage of the township road and along roads, drives and the perimeter of parking areas not to be dedicated to the township, in accordance with the standards and specifications as set forth in this section of this Article.
D. In each land development requiring site plan and/or subdivision approval and where curbing is installed by the developer, the developer will install paving equivalent to the pavement of the adjoining street in the area between the edge of the existing pavement and curbing along the entire property frontage of the road in accordance with the standards and specifications as set forth by the Township Engineer.
E. In each land development requiring widening of existing roadways and/or installation of curb along existing roadways, the following information shall be submitted:
(1) Plan and profile of the roadway at a scale of one inch equals thirty feet (1" = 30') or larger.
(2) The plan shall show the existing center line and edge of pavement elevations and proposed gutter and top of curb elevation. These elevations shall be provided every fifty (50) feet and at critical points along the road extending one hundred (100) feet beyond property lines.
(3) The profile shall show the proposed gutter line and existing edge of pavement.
(4) A cross slope of two percent to four percent (2% to 4%) shall be provided from the existing edge of road to the proposed edge of pavement or gutter line.
(5) A minimum longitudinal slope of one-half (1/2) of one percent (1%) shall be provided along the gutter line.
